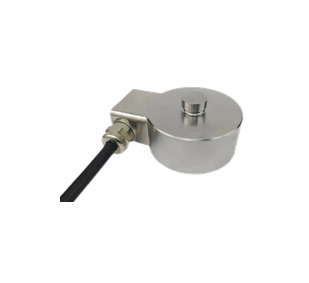

Feature
Adopting high-precision resistance strain principle
With unique technology, stable for property
Potted or laser sealing, insurance for using surrounding
Stainless steel material , preventing of oil, moisture and corrosion
Specification
Capacity |
50N-50KN |
Material |
Stainless steel |
Rated Output(mV/V) |
1.0± 20% |
Non-linearity |
±0.5%FS |
Hysteresis |
±0.2%FS |
Repeatability |
±0.2%FS |
Creep |
±0.2%FS |
Zero balance |
± 2.00%FS |
Temperature effect on zero |
±0.05%F.S./ 10℃ |
Temperature effect on output |
±0.05%F.S./ 10℃ |
Input resistance(Ω) |
350± 30 |
Output resistance(Ω) |
350±5 |
Insulation resistance |
≥5000MΩ |
Excitation voltage |
5V-15V(DC) |
Compensated temperature range |
- 10~+50℃ |
Operating temperature range |
-20~+60℃ |
Allowed overload |
150%FS |
Breaking loading |
300%FS |
Cable |
Φ3X 3M Or customized by request |
Cable color code |
Input: red+ black- Output: green+ white- |
Plan
Dimension
Rated load(KG) |
φA |
B |
φG |
H |
J |
R |
T |
φU |
X |
50N-200N |
26 |
15 |
20.5 |
3×M3 |
6 |
20 |
2.5 |
5.5 |
10.5 |
500N-20KN |
26 |
13 |
22.75 |
3×M2 |
3.5 |
40 |
1 |
8 |
10.5 |
50KN |
46 |
28 |
40 |
4×M4 |
6 |
80 |
8 |
16 |
10.5 |
Mainly used in automation, mechanical equipment, automatic equipment and other weighing systems.
