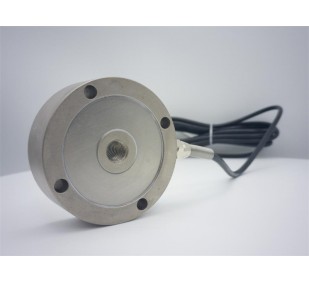

Feature
v Adopting high-precision resistance strain principle
v With unique technology, stable for property
v Potted or laser sealing, insurance for using surrounding
v Alloy steel/ Stainless steel material optional , preventing of oil, moisture and corrosion
Specification
Capacity |
0.1~100t |
Material |
Alloy steel/stainless steel |
Rated Output(mV/V) |
2.0±0.005 |
Non-linearity |
±0.03%FS |
Hysteresis |
±0.03%FS |
Repeatability |
±0.03%FS |
Creep(30 minutes) |
±0.03%FS |
Zero balance |
±1.00%FS |
Temperature effect on zero |
±0.02%F.S./10℃ |
Temperature effect on output |
±0.02%F.S./10℃ |
Input resistance(Ω) |
760±15 |
Output resistance(Ω) |
700±5 |
Insulation resistance |
≥5000MΩ |
Excitation voltage |
5V-15V(DC) |
Compensated temperature range |
-10~+40℃ |
Operating temperature range |
-10~+70℃ |
Safe overload |
150%FS |
Breaking loading |
200%FS |
Cable |
Φ5 X 6M Or customized by request |
Cable color code |
Input: red+ black- Output: green+ white- |
Plan
Dimension
Rated load(t) |
A |
B |
C |
D |
E |
F |
G |
H |
M |
0.1.0.2.0.5 |
75 |
55 |
18 |
27 |
63 |
21 |
5.5 |
30 |
M12×1.5 |
1,2,3,5 |
105 |
75 |
32 |
34 |
89 |
26.8 |
7.5 |
37 |
M16×1.5 |
10,15,20,25 |
124 |
83 |
39 |
48 |
101.8 |
38 |
8.5 |
52 |
M32×1.5 |
30,60 |
145 |
98 |
50 |
54 |
116.8 |
42 |
10.5 |
58 |
M40×1.5 |
100 |
205 |
150 |
80 |
78 |
162 |
64 |
12.5 |
85 |
M60×2 |
Application
Mainly used for testing machines, truck scales, hopper scales and other industrial weighing systems.
