Feature:
v Large range torque measurement
v Easy to use
v Stable and reliable performance
v High comprehensive accuracy
v High quality alloy steel surface plated with nickel
v Both ends are connected by keys.
Specification
Plan

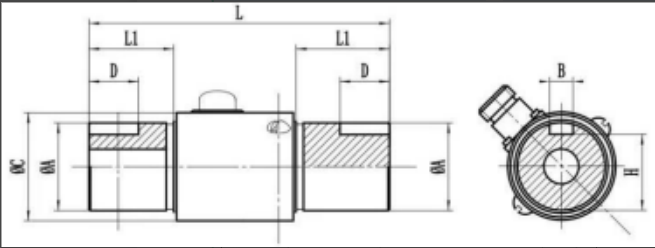

Dimension
Rated load (KN m) |
φA |
φC |
B |
2-H |
D |
L |
L1 |
0.2,0.3,0.5,1 |
50 |
60 |
16 |
44 |
60 |
210 |
73.5 |
2,3,5 |
70 |
84 |
20 |
62.5 |
70 |
238 |
75.5 |
10 |
88 |
108 |
25 |
79 |
120 |
325 |
123 |
20 |
108 |
118 |
28 |
98 |
120 |
325 |
123 |
30 |
118 |
128 |
32 |
107 |
135 |
350 |
140 |
50 |
158 |
168 |
40 |
145 |
140 |
380 |
155 |
100 |
208 |
218 |
50 |
191 |
170 |
420 |
175 |
Application
Mainly used in the industrial field where static torque measurement is required, and the positive and negative rotation Angle is less than 180°
