Capacity：0-0.5，1，2，5，10，20，50，100Nm
Material：Alloy steel
Rated Output(mV/V)：1.0-2.0mV/V
Nonlinearity：±0.1%；±0.3%；±0.5%F.S
Hysteresis：±0.1%；±0.3%；±0.5%F.S
Repeatability：±0.1%；±0.3%；±0.5%F.S
Adopting high-precision resistance strain principle
With unique technology, stable property
Small capacity torque testing, convenient for installation
one end for joint, the other end for flange joint
Using for various static/dynamic torque measurement environment

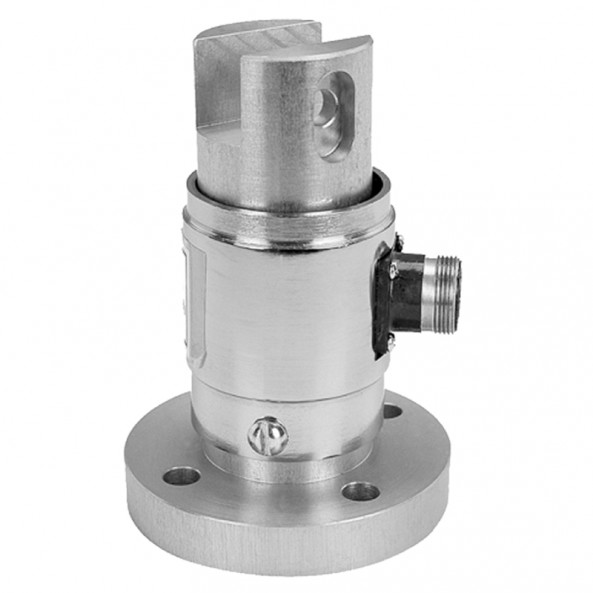

Torque Load Cell ZH-NJ
| Capacity | 0-0.5，1，2，5，10，20，50，100Nm | Material | Alloy steel |
| Rated Output(mV/V) | 1.0-2.0mV/V | Nonlinearity | ±0.1%；±0.3%；±0.5%F.S |
| Hysteresis | ±0.1%；±0.3%；±0.5%F.S | Repeatability | ±0.1%；±0.3%；±0.5%F.S |
| Temperature effect on zero | ±0.1%F.S/10℃ | Zero balance | ±1.00%FS |
| Input resistance（Ω） | 700±10Ω/350±10Ω | Output resistance（Ω） | 700±5Ω/350±5Ω |
| Insulation resistance | ≥2000MΩ | Excitation voltage | 5-12V DC |
| Compensated temperature range | Room temperature～+70℃ | Operating temperature range | -20~+60℃ |
| Safe Overload | 120%FS | Cable color code | Input: red+ black- |
| Output: green+ white- |
