Feature
v Adopting high-precision resistance strain principle
v With unique technology, stable for property
v Potted sealing, insurance for using surrounding
v Alloy steel /stainless steel material optional, preventing of oil, moisture and corrosion
Specification
|
Capacity |
0.5-2t |
Material |
Alloy steel |
|
Rated Output(mV/V) |
2.0±0.005 |
Non-linearity |
±0.02%FS |
|
Hysteresis |
±0.02%FS |
Repeatability |
±0.01%FS |
|
Creep(30 minutes) |
±0.02%FS |
Zero balance |
±1.00%FS |
|
Temperature effect on zero |
±0.02%F.S./10℃ |
Temperature effect on output |
±0.02%F.S./10℃ |
|
Input resistance（Ω） |
385±10 |
Output resistance（Ω） |
350±5 |
|
Insulation resistance |
≥5000MΩ |
Excitation voltage |
5V-10V(DC) |
|
Compensated temperature range |
-10~+50℃ |
Operating temperature range |
-20~+60℃ |
|
Safe overload |
120%FS |
Breaking loading |
150%FS |
|
Cable |
Φ5X 3M Or customized by request |
Cable color code |
Input: red+ black- Output: green+ white- |

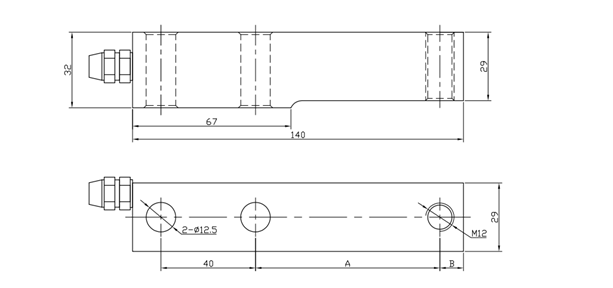

Plan
Application
Mainly used for floor scale, platform scales,batching scales and other weighing system.
