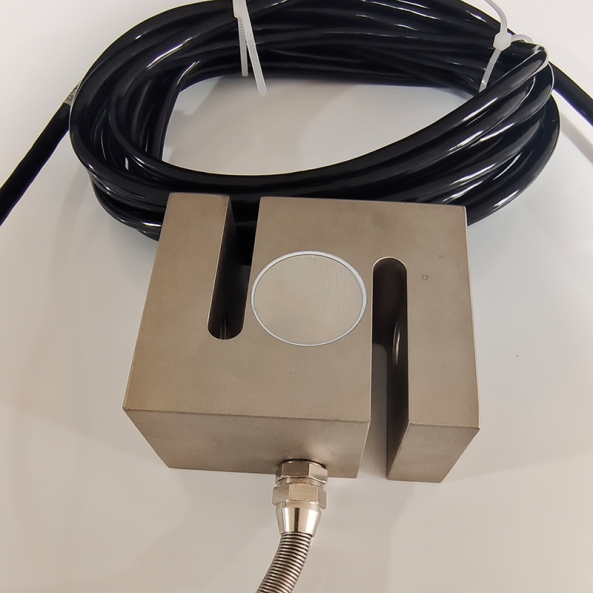

ZH-ST6 MT

Capacity:50kg~2t

Material :Alloy steel/stainless steel

Rated Output(mV/V)  :2.0 ± 0.002

Nonlinearity :±0.02%FS

Hysteresis :±0.02%FS

Repeatability :±0.01%FS

  • Features
  • Capacity

    50kg~2t

    Material

    Alloy steel/stainless steel

    Rated Output(mV/V)

    2.0 ± 0.002

    Nonlinearity

    ±0.02%FS

    Hysteresis

    ±0.02%FS

    Repeatability

    ±0.01%FS

    Creep(30 minutes)

    ±0.02%FS

    Zero balance

    ±1.00%FS

    Temperature effect on zero

    ±0.02%F.S./10

    Temperature effect on output

    ±0.02%F.S./10

    Input resistanceΩ

    381±4

    Output resistanceΩ

    350±1

    Insulation resistance

    ≥5000MΩ

    Excitation voltage

    5V-10V(DC)

    Compensated temperature range

    -10~+50

    Operating temperature range

    -20~+60

    Safe overload

    120%FS

    Breaking loading

    150%FS

    Cable

    Φ 5.4 X 5 M

    Or customized by request

    Cable color code

    Input: red+ black-

    Output: green+ white-
