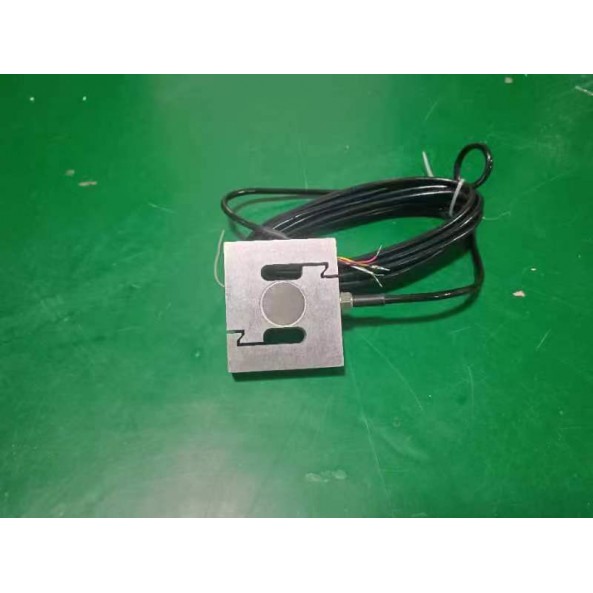

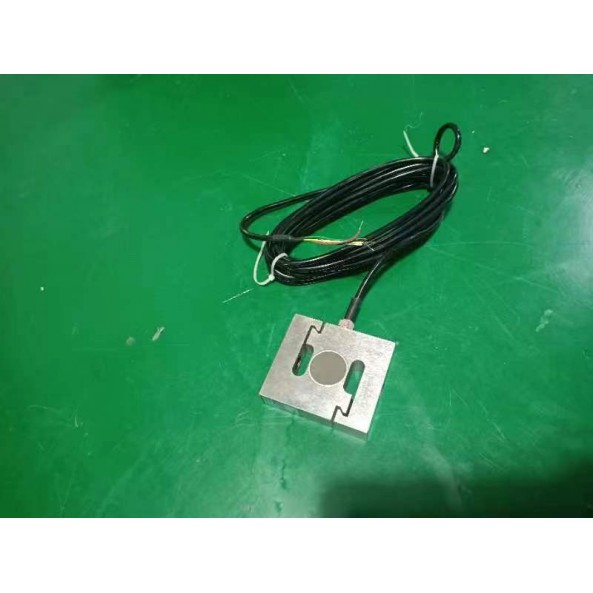

v Adopting high-precision resistance strain principle
v With unique technology, stable for property
v Potted or laser sealing, insurance for using surrounding
v Alloy steel /stainless steel material optional, preventing of oil, moisture and corrosion
Specification
|
Capacity |
0.1~20t |
Material |
Alloy steel/stainless steel |
|
Rated Output(mV/V)
|
2.0 ± 0.005 |
Non-linearity |
±0.02%FS |
|
Hysteresis |
±0.02%FS |
Repeatability |
±0.01%FS |
|
Creep(30 minutes) |
±0.02%FS |
Zero balance |
±1.00%FS |
|
Temperature effect on zero |
±0.02%F.S./10℃ |
Temperature effect on output |
±0.02%F.S./10℃ |
|
Input resistance（Ω）
|
385±10 |
Output resistance（Ω） 输出电阻 |
350±3 |
|
Insulation resistance
|
≥5000MΩ |
Excitation voltage
|
5V-10V(DC) |
|
Compensated temperature range |
-10~+50℃ |
Operating temperature range |
-20~+60℃ |
|
Safe overload |
120%FS |
Breaking loading |
150%FS |
|
Cable |
Φ 5.4 X 5 M Or customized by request |
Cable color code
|
Input: red+ black- Output: green+ white- |
Dimension
|
Rated load(t) |
L |
D |
H |
M |
|
0.1-0.75 |
80 |
70 |
19.1 |
M12×1.75 |
|
1-1.5 |
80 |
70 |
25.4 |
M12×1.75 |
|
2-5 |
108 |
92 |
25.4 |
M18×1.5 |
|
7.5 |
140 |
100 |
32 |
M24×2 |
|
10 |
178 |
130 |
51 |
M30×2 |
|
15-20 |
190 |
160 |
60 |
M39×2 |
Application
Mainly used for electronic scale, counting scales,electronic balance and other weighing system.
