Feature
v Adopting high-precision resistance strain principle
v With unique technology, stable for property
v Potted or laser sealing, insurance for using surrounding
v Alloy steel material optional, preventing of oil, moisture and corrosion
Specification
Capacity |
10t -15t |
Material |
Alloy steel |
Rated Output(mV/V) |
1.25±0.01 |
Non-linearity |
0.5%FS |
Hysteresis |
0.1%FS |
Repeatability |
0.1%FS |
Creep(30 minutes) |
0.05%FS |
Zero balance |
±2%FS |
Temperature effect on zero |
0.05%F.S./10℃ |
Temperature effect on output |
0.05%F.S./10℃ |
Input resistance(Ω) |
400±30 |
Output resistance(Ω) |
352±5
|
Insulation resistance |
≥5000MΩ |
Excitation voltage |
10V-12V(DC) |
Compensated temperature range |
-10~+60℃ |
Operating temperature range |
-30~+70℃ |
Safe overload |
120%FS |
Breaking loading |
225%FS |
Cable |
Φ5.4 X 9M Or customized by request |
Cable color code |
Input: red+ black- Output: green+ white- |

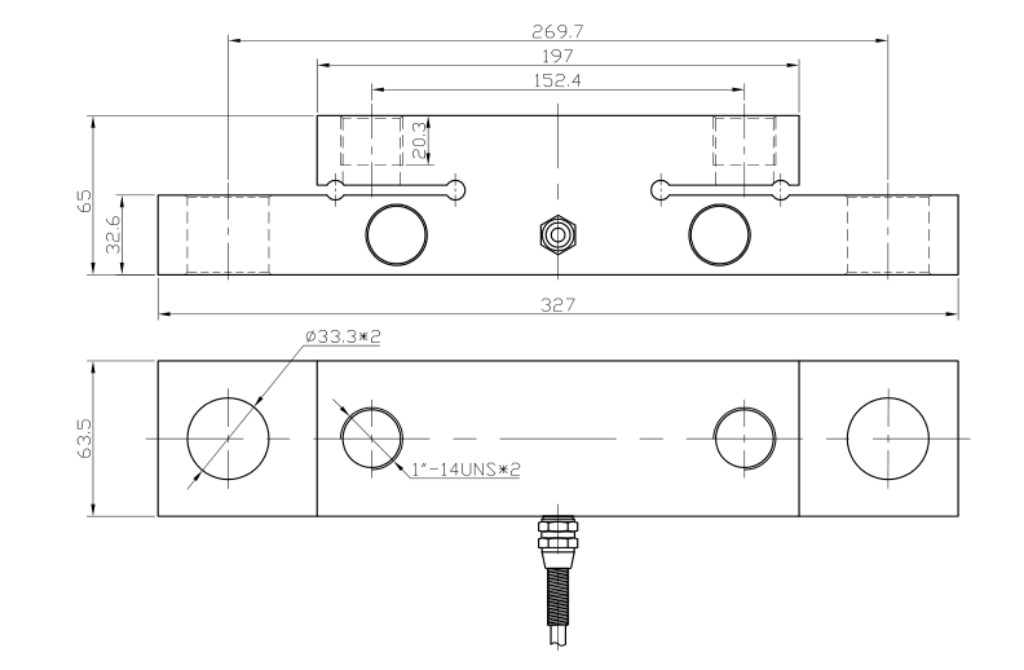

Plan
Application
Mainly used in agriculture and forestry loading, electronic truck scale and other weighing system.
