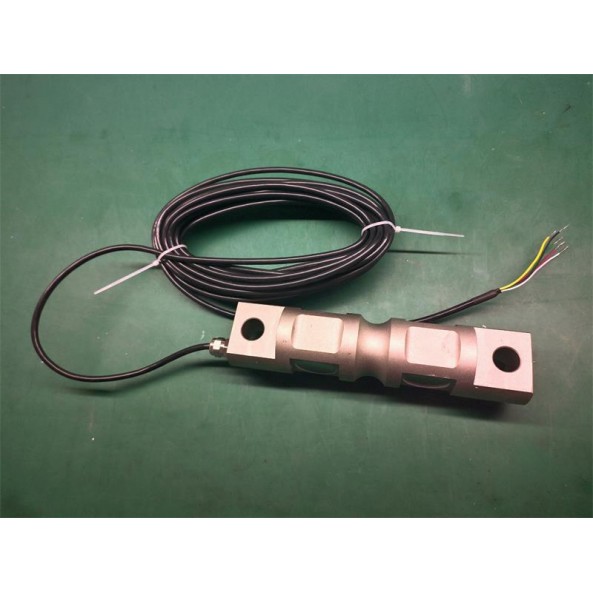

Feature
v Adopting high-precision resistance strain principle
v With unique technology, stable for property
v Potted or laser sealing, insurance for using surrounding
v Alloy steel material optional, preventing of oil, moisture and corrosion
|
Capacity |
5-200klb |
Material |
Alloy steel/Stainless steel |
|
Rated Output(mV/V) |
3.0±0.01 |
Non-linearity |
±0.03%FS |
|
Hysteresis |
±0.03%FS |
Repeatability |
±0.02%FS |
|
Creep(30 minutes) |
±0.03%FS |
Zero balance |
±1.00%FS |
|
Temperature effect on zero |
±0.03%F.S./10℃ |
Temperature effect on output |
±0.03%F.S./10℃ |
|
Input resistance（Ω） |
700±10 |
Output resistance（Ω） |
700±5
|
|
Insulation resistance |
≥5000MΩ |
Excitation voltage |
5V-10V(DC) |
|
Compensated temperature range |
-10~+50℃ |
Operating temperature range |
-20~+60℃ |
|
Safe overload |
120%FS |
Breaking loading |
150%FS |
|
Cable |
Φ5X 9M or Φ6 X 9M Or customized by request |
Cable color code |
Input: red+ black- Output:green+ white- |
Dimension
|
Rated load (klb) |
A |
B |
C |
D |
E |
F |
G |
H |
K |
R |
|
5-10 |
206.0 |
36.5 |
133.0 |
15.7 |
174.6 |
28.5 |
43.2 |
16.5 |
37.6 |
12.7 |
|
20 |
206.0 |
36.5 |
133.0 |
15.7 |
174.6 |
28.5 |
49.5 |
16.5 |
37.6 |
12.7 |
|
30-75 |
260.0 |
47.5 |
165.0 |
22.0 |
216.0 |
60.2 |
76.2 |
27.0 |
69.3 |
25.4 |
|
100 |
286.0 |
47.5 |
190.5 |
22.4 |
241.3 |
63.5 |
88.0 |
27.0 |
82.3 |
38.1 |
|
150 |
286.0 |
47.5 |
190.5 |
22.4 |
241.3 |
71.1 |
89.0 |
27.0 |
82.3 |
38.1 |
|
200 |
409.0 |
77.5 |
254.0 |
39.5 |
330.0 |
116.7 |
137.0 |
40.0 |
131.0 |
50.8 |
Mainly used in electronic truck scale, railroad scale and hopper scale and various special scales.
