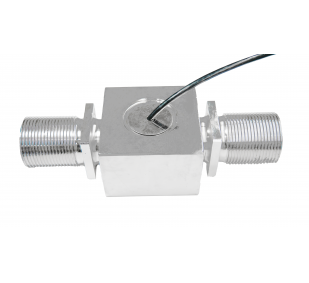

ZH-CS4

Capacity:1-10t
Material :Alloy steel
Rated Output(mV/V) :1.2 ±0.1
Nonlinearity :±0.02%FS
Hysteresis  :±0.02%FS
Repeatability :±0.01%FS
  • Features
  • Capacity

    1-10t

    Material

    Alloy steel

    Rated Output(mV/V)

    1.2 ±0.1

    Nonlinearity

    ±0.02%FS

    Hysteresis

    ±0.02%FS

    Repeatability

    ±0.01%FS

    Creep(30 minutes)

    ±0.02%FS

    Zero balance

    ±1.00%FS

    Temperature effect on zero

    ±0.02%F.S./10

    Temperature effect on output

    ±0.02%F.S./10

    Input resistanceΩ



    385±15

    Output resistanceΩ



    350±5

    Insulation resistance



    ≥5000MΩ

    Excitation voltage

    5V-10V(DC)

    Compensated temperature range

    -10~+50

    Operating temperature range

    -20~+60

    Safe overload

    150%FS

    Breaking loading

    200%FS

    Cable

    Φ4 X 0.5M

    Or customized by request

    Cable color code

    Input: red+ black-

    Output: green+ white-
