Capacity: 3-10t
Material: Alloy steel
Rated Output(mV/V): 2.0±0.1
Nonlinearity：±0.02%FS
Hysteresis：±0.02%FS
Repeatability：±0.01%FS

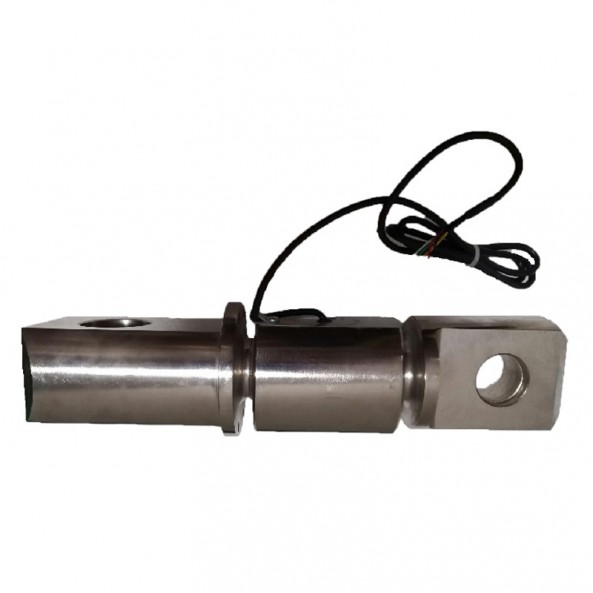

High quality alloy steel material, optimized structure for crane scales
highly safe overloading and advanced anti-deflective loading
Moistureproof sealed, simple to install
Product Parameters:
| Capacity | 3-10t | Material | Alloy steel |
| Rated Output(mV/V) | 2.0±0.1 | Nonlinearity | ±0.02%FS |
| Hysteresis | ±0.02%FS | Repeatability | ±0.01%FS |
| Creep(30 minutes) | ±0.02%FS | Zero balance | ±1.00%FS |
| Temperature effect on zero | ±0.02%F.S./10℃ | Temperature effect on output | ±0.02%F.S./10℃ |
| Input resistance（Ω） | 385±15 | Output resistance（Ω） | 350±5 |
| Insulation resistance | ≥5000MΩ | Excitation voltage | 5V-10V(DC) |
| Compensated temperature range | -10~+50℃ | Operating temperature range | -20~+60℃ |
| Safe overload | 120%FS | Breaking loading | 150%FS |
| Cable | Φ4 X 0.5 M | Cable color code | Input: red+ black- |
| Or customized by request | Output: green+ white- |
| Rated load
Capacity(t) |
A | B | C | D | E | F | G | H | J |
| 3 | 335 | 57 | 40 | 27.5 | 277.0 | 30 | 21.5 | 45 | 24 |
| 5 | 362 | 68 | 45 | 28.0 | 298.5 | 35 | 26.0 | 50 | 26 |
| 10 | 384 | 83 | 55 | 34.5 | 307.5 | 40 | 32.4 | 60 | 32 |
Application and After-Sales Service:
Mainly used for various high precision crane scales.
