Capacity：10-100kg
Material：Aluminum
Rated Output(mV/V)：2.0±0.1
Nonlinearity：±0.02%FS
Hysteresis：±0.02%FS
Repeatability：±0.01%FS

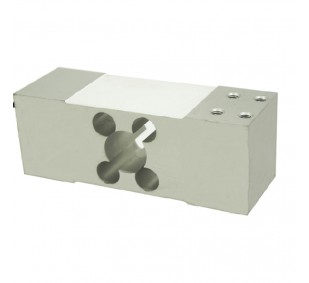

Single point load cell ZH-LP2
| Capacity | 10-100kg | Material | Aluminum |
| Rated Output(mV/V) | 2.0±0.1 | Nonlinearity | ±0.02%FS |
| Hysteresis | ±0.02%FS | Repeatability | ±0.01%FS |
| Creep(30 minutes) | ±0.02%FS | Zero balance | ±1.00%FS |
| Temperature effect on zero | ±0.02%F.S./10℃ | Temperature effect on output | ±0.02%F.S./10℃ |
| Input resistance（Ω） | 410±15 | Output resistance（Ω） | 350±3 |
| Insulation resistance | ≥5000MΩ | Excitation voltage | 5V-10V(DC) |
| Compensated temperature range | -10~+50℃ | Operating temperature range | -20~+60℃ |
| Safe overload | 120%FS | Breaking loading | 150%FS |
| Cable | Φ 5.4 X 3M | Cable color code | Input: red+ black- |
| Or customized by request | Output: green+ white- |
