Feature
v Low profile,small deflection and mini dimension
v Made of stainless steel
v High temperature could be customized for injection molding,extrusion and other manufacturing processes
v High dynamic response frequency
Specification
|
Capacity |
150kg |
Material |
stainless steel |
|
Rated Output(mV/V) |
1.5±15% |
Non-linearity |
±0.5%FS |
|
Hysteresis |
±0.2%FS |
Repeatability |
±0.2%FS |
|
Creep(30 minutes) |
±0.2%FS |
Zero balance |
±0.05mV/V |
|
Temperature effect on zero |
±0.05%F.S./10℃ |
Temperature effect on output |
±0.05%F.S./10℃ |
|
Input resistance（Ω） |
350±5 |
Output resistance（Ω） |
350±5 |
|
Insulation resistance |
≥5000MΩ |
Excitation voltage |
5V-12V(DC) |
|
Compensated temperature range |
-10~+60℃ |
Operating temperature range |
-20~+80℃ |
|
Safe overload |
150%FS |
Breaking loading |
200%FS |
|
Cable |
0.5 M Or customized by request |
Cable color code |
Input: red+ black- Output: green+ white- |

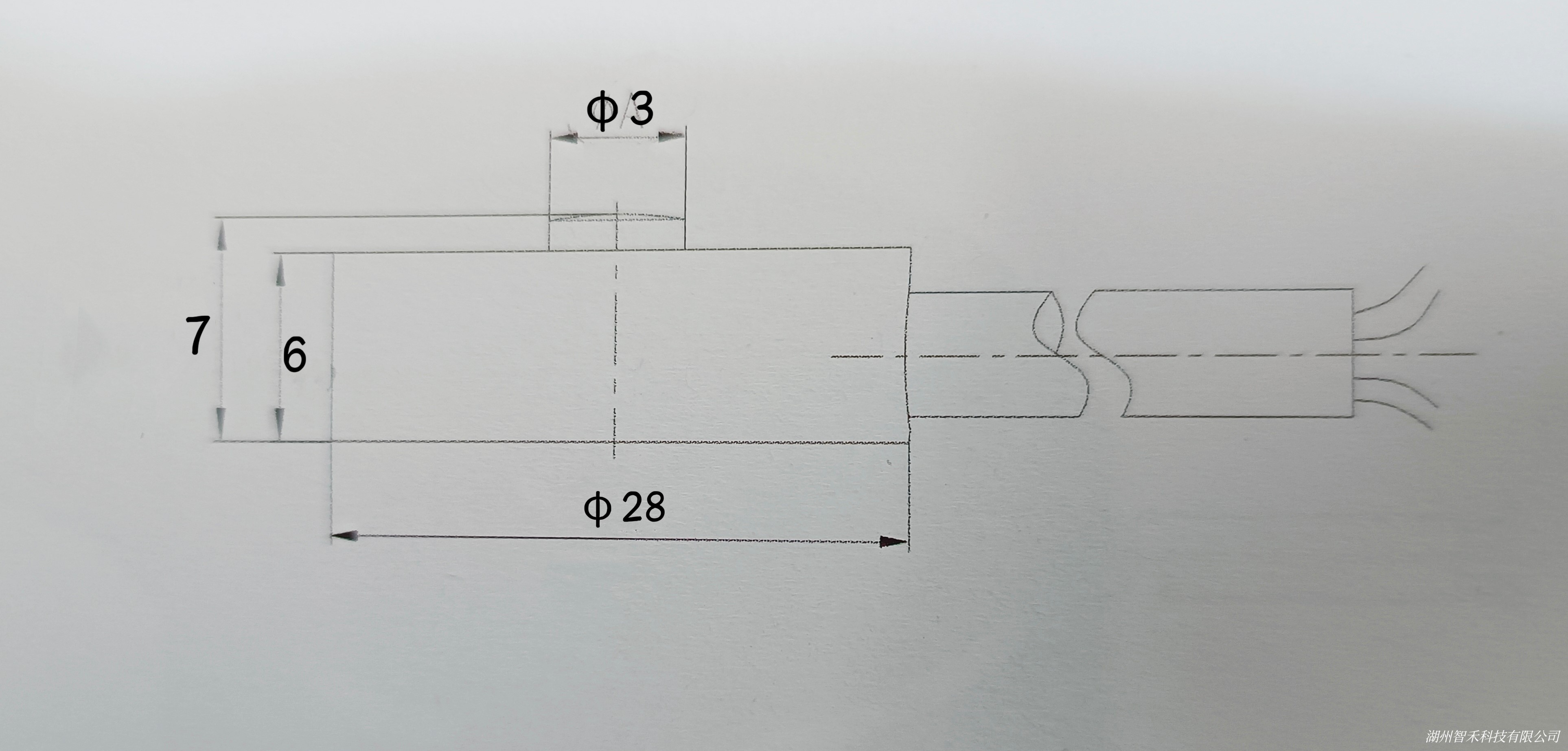

Plan
Application
Suitable for Automotive press fit, automated assembly, 3C products testing, new energy product assembly, medical testing, robotics, mold assembly and other industrial testing and control system.
