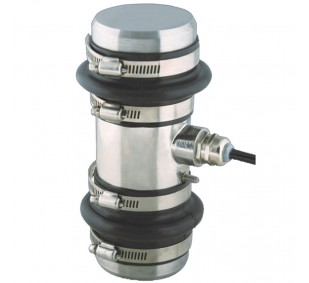

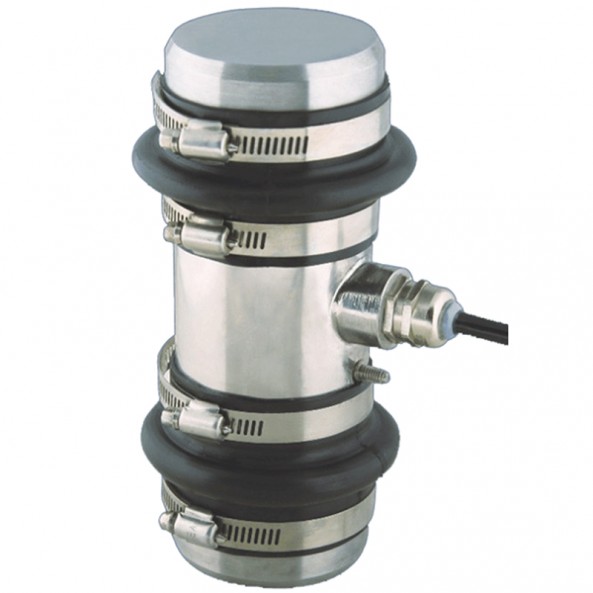

Column load cell ZH-CT4

Capacity:22.5t, 45t

Material:stainless steel

Rated Output(mV/V):1.75±0.005

Nonlinearity:±0.03%FS

Hysteresis:±0.03%FS

Repeatability:±0.02%FS

  • Features
  • Column load cell ZH-CT4

    Capacity 22.5t, 45t Material stainless steel
    Rated Output(mV/V) 1.75±0.005 Nonlinearity ±0.03%FS
    Hysteresis ±0.03%FS Repeatability ±0.02%FS
    Creep(30 minutes) ±0.02%FS Zero balance ±1.00%FS
    Temperature effect on zero ±0.02%F.S./10℃ Temperature effect on output ±0.02%F.S./10℃
    Input resistance(Ω) 560±10 Output resistance(Ω) 480±5
    Insulation resistance ≥5000MΩ Excitation voltage 5V-10V(DC)
    Compensated temperature range -10~+50℃ Operating temperature range -20~+60℃
    Safe overload 120%FS Breaking loading 150%FS
    Cable Φ6 X 15 M Cable color code Input: red+ black-
    Or customized by request Output: green+ white-

    Application and After-Sales Service:

    Mainly used in electronic truck scale, dynamic railroad scale and big capacity hopper scale and other weighing systems.
