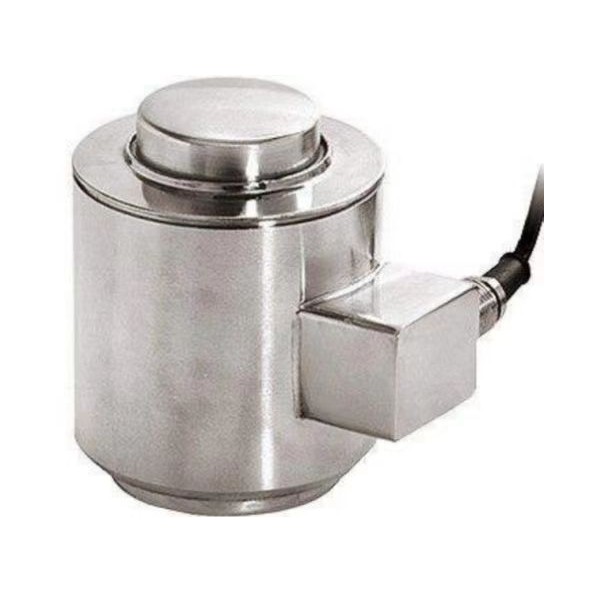

Column load cell ZH-CT1

Capacity:5t-450t

Material:Alloy steel/stainless steel

Rated Output(mV/V):2.00±0.005 Or customized by request

Nonlinearity:±0.02%FS

Hysteresis:±0.02%FS

Repeatability:±0.01%FS

  • Features
  • Product Features:

    Fast dynamic response, good self-centering
    Hermetically sealed structure
    Strong anti-overload capacity
    Easy to install and use
    Big capacity is available

    column type load cell 6

    Product Parameters:

    Column load cell ZH-CT1

    Capacity 5t-450t Material Alloy steel/stainless steel
    Rated Output(mV/V) 2.00±0.005 Nonlinearity ±0.02%FS
    Or customized by request
    Hysteresis ±0.02%FS Repeatability ±0.01%FS
    Creep(30 minutes) ±0.02%FS Zero balance ±1.00%FS
    Temperature effect on zero ±0.02%F.S./10℃ Temperature effect on output ±0.02%F.S./10℃
    Input resistance(Ω) 450±5 Output resistance(Ω) 480±5
    Insulation resistance ≥5000MΩ Excitation voltage 5V-10V(DC)
    Compensated temperature range -10~+50℃ Operating temperature range -20~+60℃
    Safe overload 120%FS Breaking loading 150%FS
    Cable Φ6 (7.5) X 9M Cable color code Input: red+ black-
    Or customized by request Output: green+ white-
